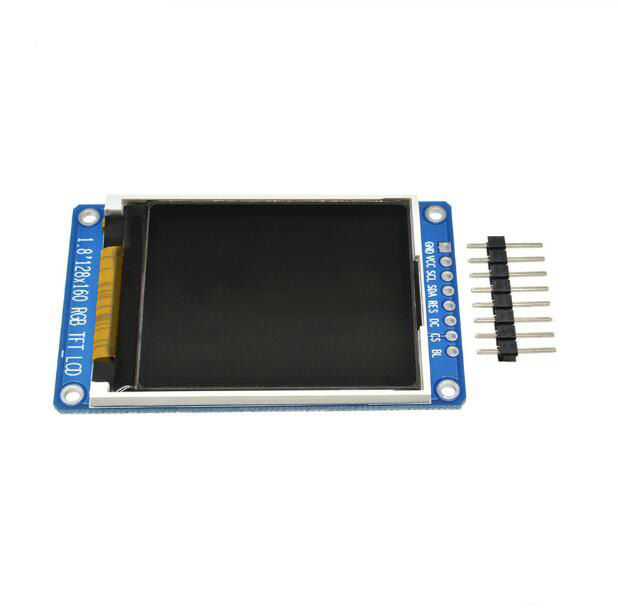

1.8″ inch Full Color 128×160 SPI Full Color TFT LCD Display Module
₨ 1,200.00
Weight | 0.00 kg |
---|
In stock
0
People watching this product now!
SKU:
0107
Categories: LCD Module, Module
Tags: 1.8 Inch SPI LCD, 1.8 Inch TFT LCD, 128x160 LCD Module, 128x160 TFT LCD, Color TFT LCD Display, Full Color 1.8 Inch Display, Full Color TFT Display, SPI Display Module Nepal, SPI LCD Display, SPI TFT Display Module, TFT LCD for Arduino, TFT LCD Nepal
Description
Features
SIZE 1.8inch
Display Mode a-TFT
Display Format Graphic 128RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 35(W)*56 (H)*3.45+/-0.1(T)mm
Resolution 128RGB*160 Dots
LCD Active area 28.03 (W)*35.04 (H)
Pixel size 0.219(W)*0.219(H)
Viewing Direction 12 o’clock
Operating Temperature -20¡«70°C
2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
