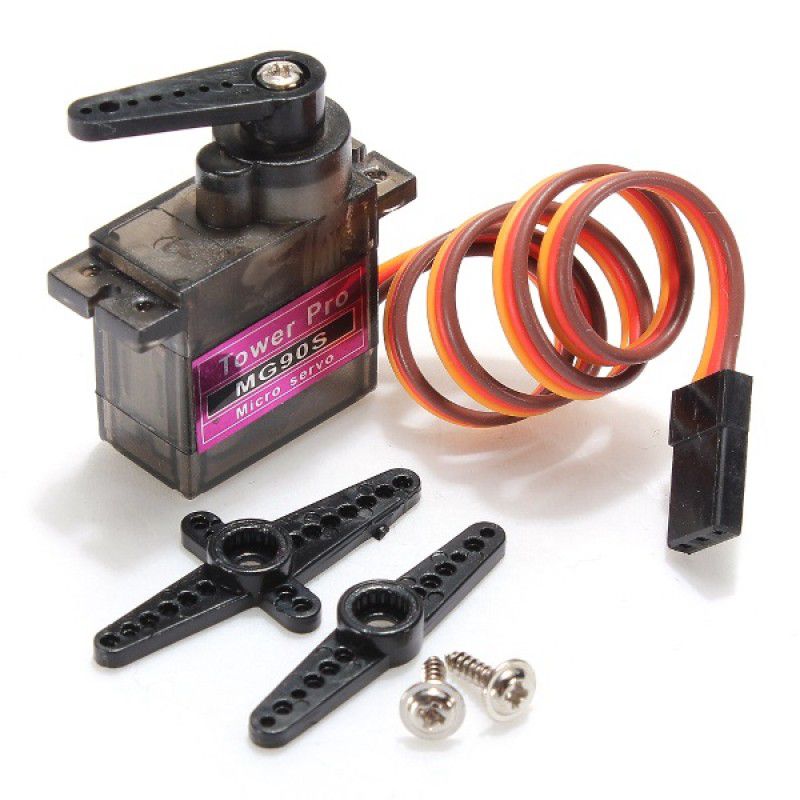

MG 90S Servo Motor
₨ 380.00
Weight | 0.00 kg |
---|
In stock
0
People watching this product now!
SKU:
0854
Categories: Motor, Servo Motor
Tags: DC Servo Motor, MG 90S for Robotics, MG 90S Mini Servo Motor Nepal, MG 90S Motor, MG 90S Motor Nepal, MG 90S Servo, Micro Servo Motor, Mini Servo Motor, Servo Motor for Arduino, Servo Motor for DIY Projects, Servo Motor MG 90S
Description
The MG90s servo is a metal motor gear that is perfect for high-end application. It can rotate approximately 180 degrees.It comes with with 3 arms and screws and with pre-soldered female wires with over torque protection for durability . The PWM (Signal) is Orange , VCC (Power) is Red , GND (Ground) is Brown . It can be used for making spider robot, biped robot etc
Model Number | MG90S Servo |
Material | Plastic |
Gear Type | Metal |
Operating Voltage | 4.8 – 6.0 V |
Stall torque (4.8V) | 1.8kg/cm |
Stall torque (6.6V) | 2.2kg/cm |
Operating speed (4.8V) | 0.10sec/60degree |
Operating speed (6.0V) | 0.08sec/60degree |
Temperature Range | -30 to +60 Degree C |
Dead Band width | 5us |
Servo Wire Length | 25 cm |
Color | Black |
Rotation/Support | Dual Bearings |
Rated Voltage | 5 V DC |
Weight | 13.4g |
Size | 22.8 x 12.2 x 28.5mm |
