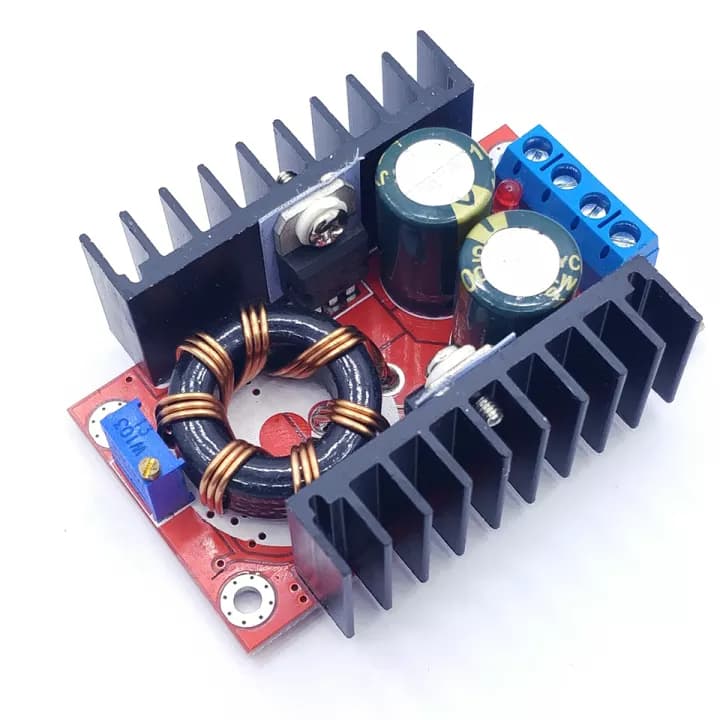

10-30V to 12-35V Step Up CV CC 150W 10A DC DC Boost Converter Car Power Supply LED Driver Charger Adjustable Voltage Regulator

 800.00

Product Description

Module Properties: non-isolated step-up module (BOOST)
65 * 56.5 * 23 (length * width * high) (mm)
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40c to 85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45c
No-load current: 25mA typical
Voltage regulation: 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
