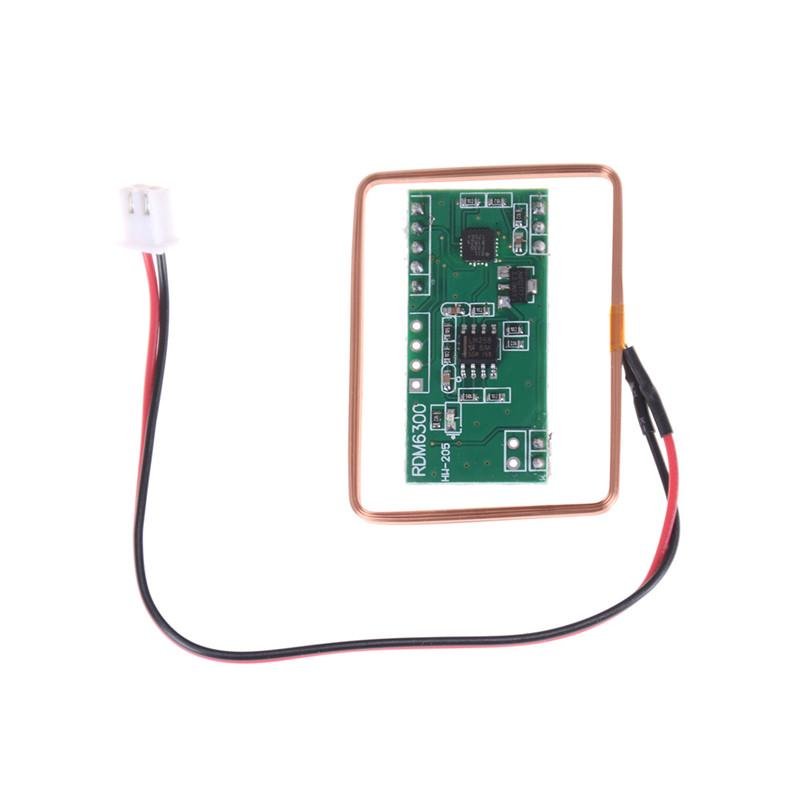

RDM6300 RFID READER MODULE – 125KHZ

RDM6300 125KHz card reader mini-module is designed for reading code from 125KHz card compatible read-only tags and read/write cards. RDM6300 125KGz can be applied in many environments.

SPECIFICATIONS:

• Frequency: 125KHz
• Baud rate: 9600bps (TTL RS232 format)
• Working voltage: DC 5V (±5%)
• Relative humidity: 0 – 95%
• Time to read: < 100ms
• Interface: Uart
• Working temperature: -10℃ to +70℃
• Storage temperature: -20℃ to +80℃
• Wiring size: 46mm * 32mm * 3mm
• Module size: 38.5mm * 19mm * 9mm
• Supported cards: EM/TK 4100, EM/TK4102, EM4200 or compatible
• Receiving range: 20mm – 50mm

CONTENTS:

• 1x RDM6300 RFID Reader Module – 125Khz
