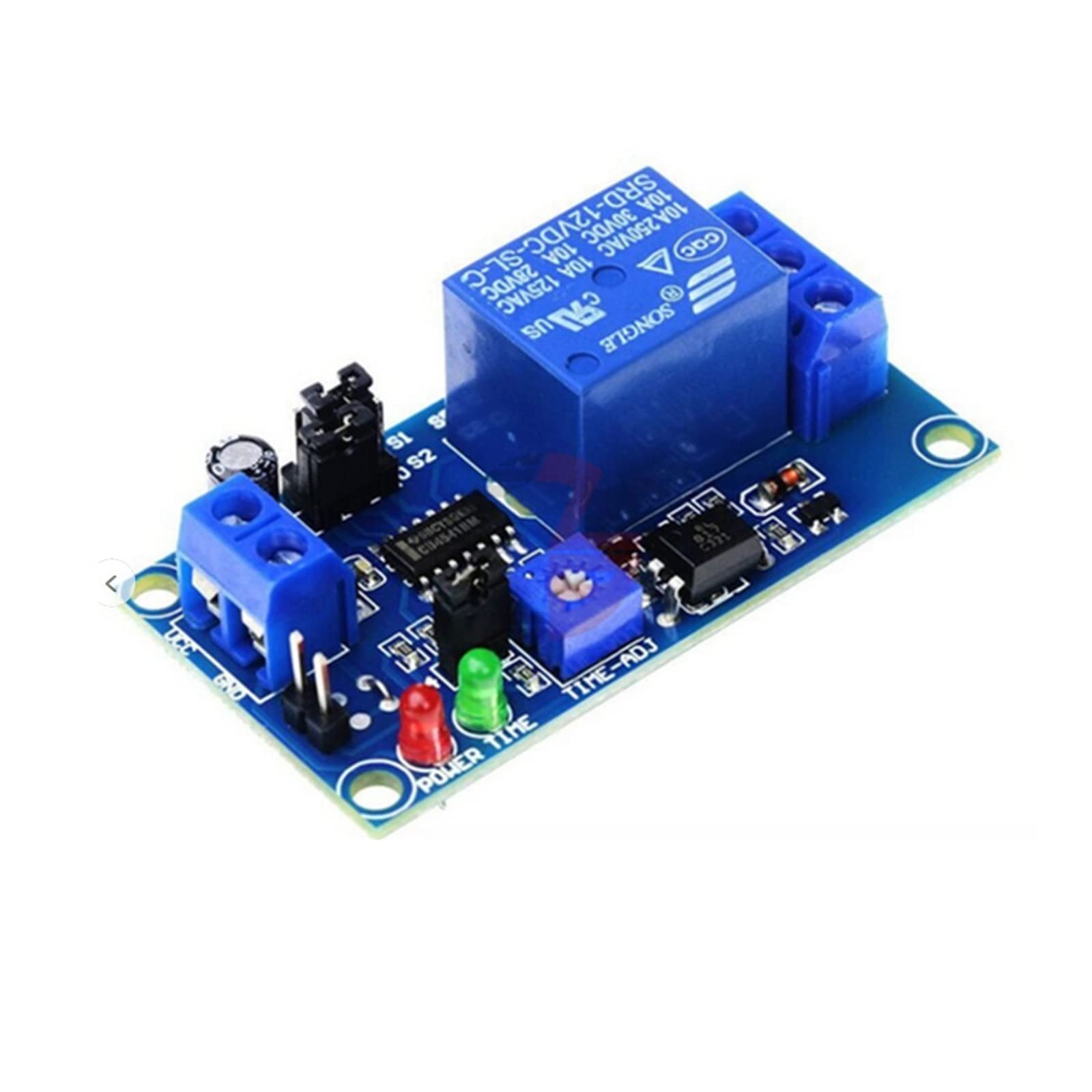

Time Relay Module Normal Open Time Delay Relay Timing Timer Relay Control Switch Adjustable Potentiometer LED Indicator

DC 5V,12V Time Relay Module Normal Open Time Delay Relay Timing Timer Relay Control Switch Adjustable Potentiometer LED Indicator

Description:

With 8 time ranges selected shortest 0.1s most up to 1 hour Protection against power reversal protection diode, better protection module Can be accessed by a large current load (250V ac 10A or 30V dc 10A) With delay adjustment potentiometer clockwise adjustment time longer.
Input voltage: 5V,12V
Quiescent dissipation: 5.5mA
Maximum power consumption:42mA

Package Included:

1 x Time Delay Relay Module
